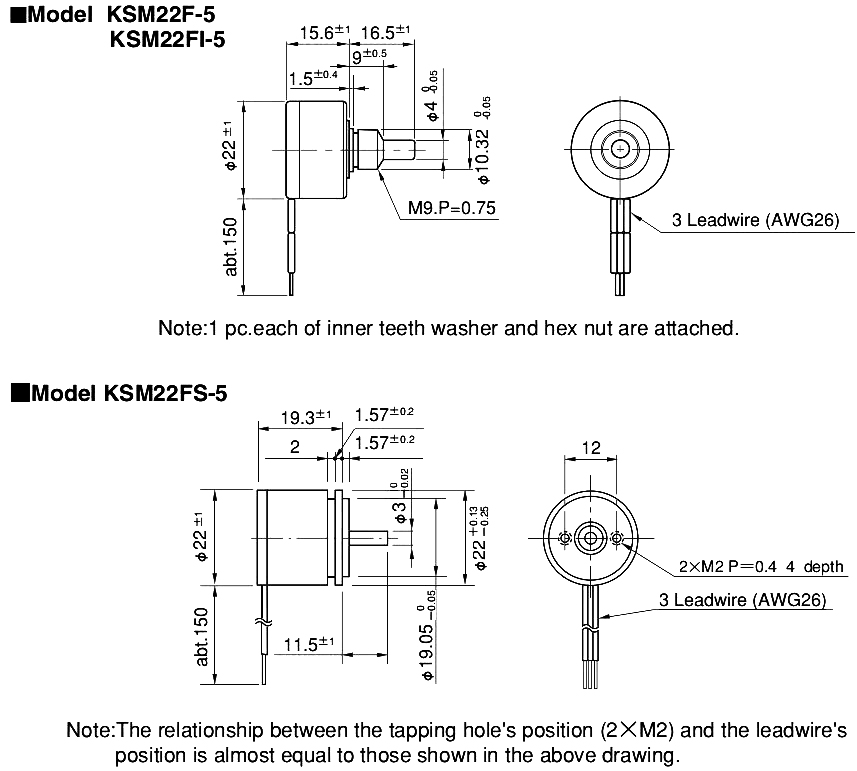

Model No.

KSM22F, KSM22FI, KSM22FS

Current Consumption

Approx. 3.5mA

Independent Linearity Tolerance

±0.5%FS(FS=100°)

Mechanical Rotating Angle

360°(Endless)

Effective Electrical Angle

±50°(100°)

Applied Voltage

5V.D.C.

Load resistance

>10KΩ

Effective Output

Approx.10％～90％ Vin?FS(FS=100°)

Output Temperature Characteristics

Within ±2.5％ Vout?FS

Drift at Center Position

Within ±0.5％ Vout?FS

Operating Temperature Range

-40°C～+105°C

Storage Temperature Range

-40°C～+105°C

Mass

Approx.15g

Rotating Torque

<1mN·m(10gf·cm)、<3mN·m(30gf·cm)、<0.2mN·m(2gf·cm)

Model No.

KSM22F, KSM22FI, KSM22FS

Thermal Shock

5 cycles -50°～+105°

Exposure at Low Temperature

24 hours at -50°C

Exposure at High Temperature

1,000 hours at +105°C

Moisture Resistance

40℃　95％RH　120 hours

Vibration

10～2,000Hz　196m/s2　12 hours

Shock

980m/s2(18 times)

Rotational Life Expectancy

Approx. 100,000,000, Approx. 10,000,000, Approx. 200,000,000

Special applied voltage

Possible to meet with from 3V.D.C. to 10V.D.C.

Special effective electrical rotating angle

Possible to meet with from ± 25゜to ± 80゜

Special shaft type

Special machining on the shaft
